Key Features

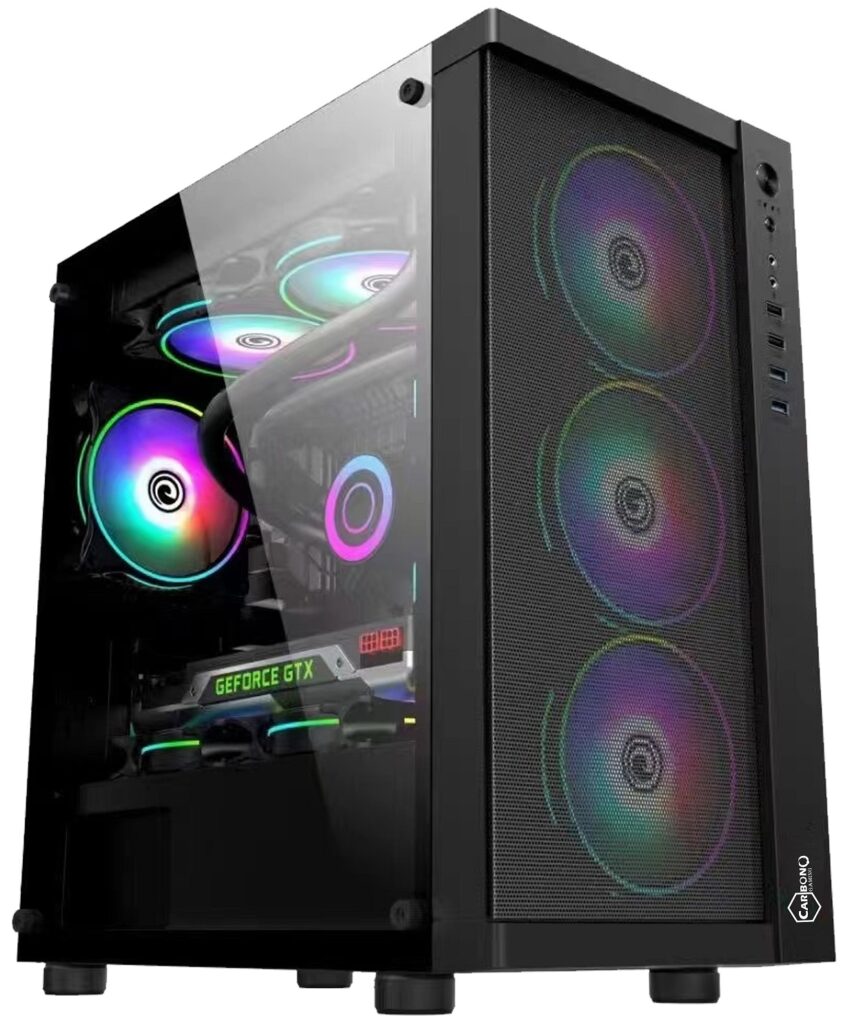

- Model: CG02XZM (MESS)
- Motherboard Support: ATX / M-ATX / ITX
- Tool-less Tempered Glass Side Panel
- Can mount up to 07 fans
- 4 x 120mm ARGB Fan included
| Casing | |
| CPU MAX Height | 165 mm |
| Motherboard Support | M-ATX / ITX |
| Case Type | Mid-Tower |
| Cooling System | |
| Fan Support | Top: 2 x 120 mm (optional) Bottom: 2×120 mm(Optional) FRONT: 3 x 120 mm (optional) Rear: 1 x 120 mm Power compartment :120mm * 3 (optional); |
| Pre- Installed Fans | Front : 3 x 120 mm ARGB Fan Rear: 1 x 120 mm ARGB Fan |
| Radiator | Front: 120 / 140 / 240 mm Top: 120 / 140 Rear: 120 mm |
| Power | |
| PSU | Maximum PSU Length:200 mm / 7.87 inches |
| Ports | |
| I/O Port | 1 x USB 3.2 Gen1 Type-A (5 Gbps) 2xUSB2.0 1 x HD Audio-out 1 x Mic-in |
| Internal Drive Bays | 3 x 2.5” 2 x 2.5″/3.5” |
| Physical Specification | |
| Color | BLACK |
| Expansion Slots | 4 |
| Dimension | 390mm (length) x 212mm (width) x 440mm (height) |
| Weight | 5.6 kg |
| Others | |
| Other Features | Maximum Graphics Card Length:350 mm |
| Warranty Information | |
| Warranty | No Warranty |
At a Glance:
Hardware dimensions: 360mm (length) x 212mm (width) x 420mm (height);
Product size: 395mm (length) x 212mm (width) x 440mm (height);
Packaging size: 481mm (length) x 269mm (width) x 470mm (height);
Hardware structure: M-ATX;
Hardware material: SPCC 0.5mm;
Motherboard type: supports back insertion of MICRO/ITX;
Hard disk support: 3.5HDD * 1; 2.5 SSD * 3;
4 expansion slots;
CPU heat sink size ≤ 165mm; Graphics card size ≤ 350mm;
Power support: Standard ATX power supply;
I/O panel: USB3.0 * 1, USB2.0 * 2; HD Audio;
Fan cooling system:
Top fan 120mm * 3 (optional); Rear panel 120mm * 1 (optional); 120mm * 2 on the side of the motherboard (optional); Power compartment 120mm * 3 (optional);
Water cooling support: 240mm water cooling (optional);
Wiring method: Back wiring.
